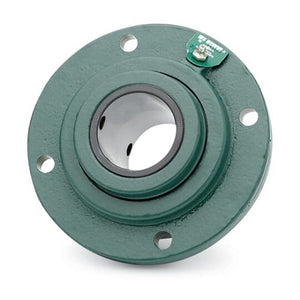

BEARING ASSY FC-E-203R TYPE E-XTRA 2 3/16

The FC-E-203R Type E-Xtra Bearing Assembly is a heavy-duty four-bolt piloted flange-mount roller bearing unit engineered for maximum reliability in industrial and agricultural machinery. Designed with a tapered-roller insert and cast-iron housing, it delivers superior strength, load capacity, and longevity for fixed-shaft applications where precision alignment and durability are critical.

Equipped with a set-screw locking device for secure shaft attachment and a triple-lip contact seal to keep out contaminants, this unit provides dependable performance even in harsh operating environments. The FC-E-203R is pre-lubricated with MobilGrease XHP222, offering smooth operation and extended maintenance intervals.

Key Features & Benefits

• Tapered-roller bearing design – handles combined radial and thrust loads

• 4-bolt piloted flange mount – ensures accurate positioning and easy installation

• Cast-iron housing – solid, durable construction for heavy-duty use

• Triple-lip contact seal – superior protection against dust, moisture, and debris

• Set-screw locking – provides a secure, vibration-resistant fit on the shaft

• Factory-lubricated with MobilGrease XHP222 – ready for immediate service

• Non-expansion (fixed) bearing – maintains shaft positioning for stable performance

• Rated to 2730 rpm with high load capacities

Applications

• Conveyors and material-handling systems

• Agricultural machinery and augers

• Mining, quarrying, and aggregate equipment

• Industrial drives, fans, and blowers

• Heavy-duty mechanical power transmission assemblies

Specifications

• Series: FC-E (Type E-Xtra)

• Bore Diameter: 2-3/16 in (55.56 mm)

• Mounting Type: 4-Bolt Piloted Flange

• Housing Material: Cast Iron (Solid Construction)

• Bearing Type: Tapered Roller (Bearing Insert Steel)

• Locking Device: Set Screw

• Seal Type: Triple-Lip Contact Seal

• Expansion Type: Non-Expansion (Fixed)

• Grease: MobilGrease XHP222

• Dynamic Load Capacity: 9850 lbf (43.8 kN)

• Static Load Capacity: 48 200 lbf (214 kN)

• Max Speed: 2730 rpm

• Bolt Circle Diameter: 6.000 in

• Bore Length: 3.75 in

• Weight: 13.51 lb (6.13 kg)

• Manufacturer Catalog No.: 023131 UPC: 782475697717

• Country of Origin: USA

Built for endurance, precision, and performance — the FC-E-203R Type E-Xtra is the professional’s choice for high-load, high-speed bearing applications.
