HANGER ASSY. SEALMASTER #SCHB32C 2 DIA.

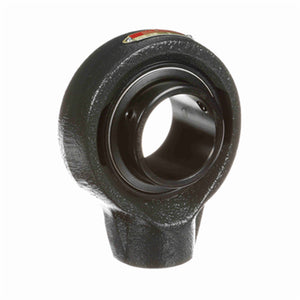

The Sealmaster® SCHB32C Hanger Bearing Assembly is engineered for screw conveyor applications, offering exceptional durability, precise alignment, and smooth operation in dry or dusty environments. Featuring a robust powder-coated cast iron housing and zone-hardened inner ring, it ensures long service life under demanding industrial conditions.

The assembly incorporates a felt labyrinth seal and flinger for effective contamination resistance, while the land-riding retainer design allows for 360° grease circulation, improving lubrication retention and performance. Designed for easy re-lubrication through the mounting pipe, the SCHB32C provides reliable, low-maintenance operation across a wide range of applications.

Key Features

• Heavy-duty cast iron housing with epoxy powder coating

• Zone-hardened inner ring with diamond-faceted set screws for secure shaft locking

• Felt labyrinth seal and flinger protect against dust and debris

• Land-riding retainer design ensures even grease distribution

• Fully re-lubricatable with lithium complex NLGI 2 grease

• ±2° static misalignment capability

Specifications

• Bore Size: 2" (50.8 mm)

• Bearing Type: Ball Bearing

• Duty Series: Standard (Gold Line)

• Housing Material: Cast Iron, Gray

• Locking Type: Set Screw

• Seal Type: Felt Labyrinth

• Speed (Max): 3550 RPM

• Operating Temp (Max): 220°F (104°C)

• Base to Center Height: 3.25 in

• Overall Height: 5.44 in

• Overall Width: 4.38 in

• Weight: 4.8 lb

Reliable, re-lubricatable, and precision-engineered — the Sealmaster SCHB32C is built to perform in demanding screw conveyor environments.
