HANGER ASSY. #SCHB-SC-207 2 7/16OD

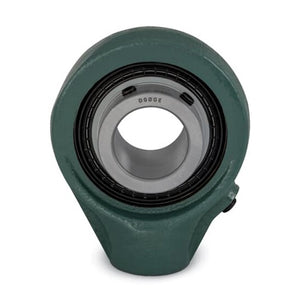

The Dodge SCHB-SC-207 Hanger Bearing Assembly is a robust, precision-engineered solution designed for screw conveyor applications and other demanding industrial environments. Built with a ductile iron housing and a steel wide-inner-ring insert bearing, this unit delivers exceptional load capacity, long service life, and resistance to wear under heavy use.

Featuring a set screw locking system for secure shaft retention and a single lip contact seal for effective protection against contaminants, this assembly ensures consistent performance in dusty or high-vibration applications. The SCHB-SC-207 is relubricatable, making it easy to maintain for extended reliability in the field.

Key Features

• 2-7/16" bore diameter for heavy-duty industrial shafts

• Ductile iron housing for superior strength and durability

• Set screw locking for secure and simple installation

• Single lip contact seal protects against dust and debris

• Non-expansion bearing for fixed shaft positioning

• Relubricatable design for long-lasting performance

• Wide inner ring for added stability and load support

Specifications

• Brand: DODGE (RBC Bearings)

• Bore Diameter: 2.438 in (61.9 mm)

• Bearing Type: Ball Bearing

• Housing Material: Ductile Iron

• Mounting Thread: 1¼" Straight Pipe Female

• Base to Center Height: 4.00 in (101.6 mm)

• Length Through Bore: 2.31 in (58.7 mm)

• Housing Outside Diameter: 5.5 in (139.7 mm)

• Overall Length: 6.75 in (171.5 mm)

• Locking Device: Set Screw

• Seal Type: Single Lip Contact

• Relubricatable: Yes

• Insert Part Number: INS-SC-207

• Weight: 7.37 lb (3.34 kg)

Durable, reliable, and designed for precision — the Dodge SCHB-SC-207 delivers strong performance and long life in screw conveyor and heavy industrial applications.
