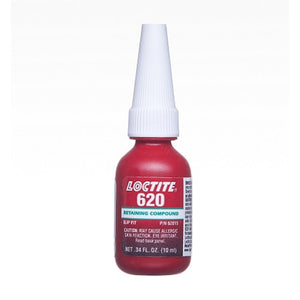

LOCTITE 620 RETAINER HIGH 10ML
M-620-10Designed for extreme heat and demanding environments, Loctite® 620 is a high-strength, high-temperature retaining compound ideal for bonding cylindrical metal assemblies. This anaerobic adhesive cures in the absence of air between close-fitting surfaces to form a strong, vibration-resistant bond that prevents loosening, leakage, and fretting — even under intense thermal cycling.
Perfect for applications requiring superior heat resistance, Loctite 620 performs in continuous service up to 200°C and withstands peaks of 230°C. Common uses include retaining bearings in automotive transmissions, sleeves in pump housings, and locating pins in radiator assemblies. Once cured, it delivers a shear strength of 17.2 N/mm² for secure, permanent retention.
With its medium viscosity (8000 mPa·s), Loctite 620 is easy to apply, providing uniform coverage and excellent gap-filling capability. Backed by DVGW approval (EN 751-1: NG-5146AR0622), it meets international standards for performance and safety in high-stress mechanical assemblies.
Key Features:
-
High-strength retaining compound for cylindrical metal parts
-
Temperature resistant up to 200°C (continuous) and 230°C (peak)
-
Prevents loosening and leakage from shock and vibration
-
Shear strength: 17.2 N/mm² for maximum hold
-
Medium viscosity (8000 mPa·s) for easy, accurate application
-
Fixture time: 60 minutes; full cure: 24 hours
-
Ideal for bearings, sleeves, and radiator pins
-
DVGW Approved (EN 751-1: NG-5146AR0622)
-
Colour: Green
-
Size: 10 mL
Specifications:
-
Brand: Loctite®
-
Model: 620
-
Type: High-Temperature Retaining Compound
-
Colour: Green
-
Size: 10 mL
-
Viscosity: 8000 mPa·s
-
Strength: High
-
Shear Strength: 17.2 N/mm²
-
Fixture Time: 60 minutes
-
Full Cure: 24 hours
-
Temperature Range: –55°C to +230°C
-
Approval: DVGW (EN 751-1: NG-5146AR0622)
Compact, strong, and heat-resistant — Loctite® 620 10 mL delivers the same high-performance retention as the larger pack, perfect for precision assembly and repair.
